Optimizing Robotic Welding Systems: 8 Key Implementation Factors

Optimizing Robotic Welding Systems: 8 Key Implementation Factors

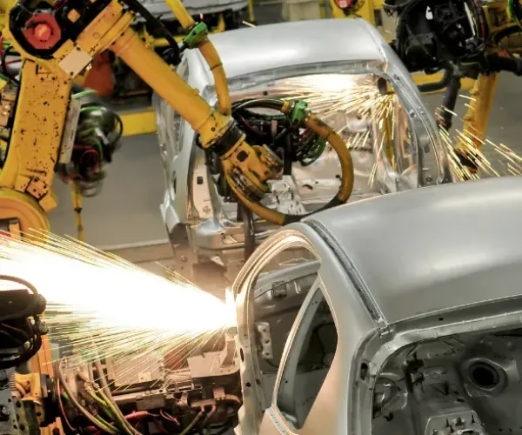

The integration of robot arm welding systems represents a transformative advancement in modern manufacturing. To maximize the potential of robot arm automation, manufacturers must carefully evaluate these critical implementation factors that directly impact productivity, quality, and operational safety.

1. Comprehensive Safety Integration

• Workcell Design: Implement ANSI/RIA R15.06-compliant robot arm workcells with pressure-sensitive mats and dual-channel emergency stops

• Collaborative Features: Specify robot arm models with ISO/TS 15066 power-and-force limiting for safe human interaction during setup and maintenance

2. Precision Motion Requirements

• Dynamic Performance: Select robot arm units with path accuracy <0.1mm for complex 3D welding paths in aerospace applications

• Arm Architecture: Evaluate articulated (6-axis) vs. SCARA configurations based on workspace constraints and weld joint accessibility

3. Advanced Process Control

• Welding Power Synergy: Match robot arm kinematics with advanced power sources featuring real-time waveform control (±1% parameter stability)

• Adaptive Features: Implement through-arc seam tracking and laser-based joint finding for variable-gap applications

4. Smart Programming Infrastructure

• Augmented Reality Tools: Utilize AR-assisted robot arm programming to reduce teach pendant time by 40%

• Cloud-Based Simulation: Leverage digital twin technology to validate robot arm reach and cycle times across multiple product variants

5. Enterprise System Connectivity

• IIoT Readiness: Ensure robot arm controllers support OPC UA for seamless MES/ERP integration

• Data Analytics: Capture and analyze 500+ welding parameters per joint for continuous process improvement

6. Flexible Tooling Solutions

• Automated Tool Changers: Equip robot arm wrists with ISO 9409-1 compliant changers for rapid torch/tool switching

• Positioner Integration: Synchronize robot arm motion with 2-axis turntables for optimal weld positioning

7. In-Line Quality Verification

• Multi-Sensor Inspection: Combine robot arm-mounted vision systems with ultrasonic testing for comprehensive quality assurance

• Statistical Process Control: Implement real-time SPC charts with automatic process adjustment triggers

8. Lifecycle Optimization

• Condition Monitoring: Track robot arm servo motor currents and reducer temperatures for predictive maintenance

• Skills Development: Establish tiered certification programs covering robot arm operation, programming, and troubleshooting

Performance Benchmarks:

• 55-70% improvement in arc-on time versus manual welding

• 90% first-pass weld acceptance rates

• 30% reduction in consumable costs through optimized parameters

Implementation Roadmap:

1. Process Audit - 2-week welding analysis

2. Cell Design - 3D simulation and risk assessment

3. Commissioning - 4-week installation and validation

4. Training - 120-hour certification program
