ARTECH CNC Designs Custom 3D Printing & Milling Robotic Arm for Client, Equipped with Ultra-Fine Nozzles to Meet Strict High-Precision Printing Standards

Amid the deepening global transformation of industrial intelligence, composite robotic equipment integrating additive manufacturing (3D printing) and subtractive milling has become an indispensable core production tool for high-end cultural creation, sculptural models, custom furniture, precision prototypes, industrial molds and other sectors. According to the 2026 Global Industry Research Report on Additive & Subtractive Composite Manufacturing Equipment, the market scale of integrated robotic machines combining 3D printing and CNC milling will exceed USD 7 billion by 2035, with an average annual compound growth rate of over 16%. Relying on a complete industrial chain of CNC equipment, the Asia-Pacific region accounts for 41.2% of the global market share. Chinese machinery manufacturers, with cost-effective products, strong customized development capacity and comprehensive after-sales systems, keep securing orders for high-end customized equipment from overseas markets.

Nevertheless, the industry has long been plagued by irreconcilable technical pain points. Although standalone 3D printers can freely form complex hollow structures, curved surfaces and relief patterns, workpieces printed with standard-diameter nozzles bear obvious layer lines, blurry fine lines and accumulated materials at corners. Subsequent manual polishing and milling cannot fully eliminate surface defects. Conventional milling robot arms deliver stable precision and superior surface smoothness, yet they cannot complete integrated forming of complex special-shaped structures. Workpieces require multiple mold splits and secondary clamping processes, extending production cycles and leading to uncontrollable accumulated errors, which greatly raise clients’ production costs and reject rates.

To address the increasingly stringent requirements of overseas high-end art and precision model manufacturers for forming accuracy, detail restoration and surface smoothness, ARTECH CNC Company, a developer, customizer and producer of intelligent CNC equipment with over a decade of experience, has launched the full-process scheme design, structural optimization, software-hardware joint debugging and in-plant process testing of a tailor-made 3D printing and milling robotic arm, supported by its standardized intelligent manufacturing plant, independent mechanical R&D laboratory and CNC system commissioning center.

The cooperating client specializes in exporting high-end replica stone sculptures, custom solid wood special-shaped soft furnishings, miniature craft models and resin cultural and creative sculptures to premium art workshops and design studios across Europe and America. It processes a wide range of printing materials including PLA, wood fiber composites, flexible resin, lightweight foam and carbon fiber filled materials. During multiple rounds of pre-project technical communication, drawing exchanges and sample verification, the client put forward printing and forming standards far above general industrial benchmarks, which became the core technical breakthrough point for this customized machine development.

To fully satisfy the client’s demand for refined printing and integrated high-precision milling production, the R&D team of ARTECH CNC abandoned universal 0.4mm standard industrial printing nozzles available on the market, and specially fitted this composite robotic arm with ultra-fine precision 3D printing nozzles featuring smaller apertures, higher fluid control accuracy and more consistent material output. The design eliminates forming defects of delicate textures starting from the material extrusion end. Paired with a multi-axis linkage milling spindle, the machine forms a fully automatic closed-loop workflow: integrated blank forming via 3D printing followed by synchronous precision milling and surface finishing by the robotic arm. The complete machine has passed a 72-hour non-stop continuous stability test, multi-material printing process verification and comparative tests on curved surface detail forming. All indicators including machining accuracy, detail restoration capacity and long-term operational stability have met the standards. After watching the full test video remotely, the client highly recognized the overall design scheme of the equipment and the printing effect brought by the ultra-fine nozzles.

As a one-stop domestic service provider for customized intelligent CNC equipment, ARTECH CNC has long focused on industrial robots and additive-subtractive composite processing equipment. After years of technological accumulation, it has built four mature core product lines: 6-axis milling robot arms, large-format industrial 3D printers, 5-axis CNC carving routers and integrated 3D printing robots. Its products are exported to more than 100 countries worldwide, serving over 10,000 clients including furniture factories, sculpture workshops, cultural and creative design studios, industrial component R&D enterprises, landscape sculpture institutions and mold manufacturers.

Different from mass standardized equipment manufacturers in the industry, ARTECH CNC’s core competitiveness lies in full-process customized service capacity. It can complete special design and development of mechanical structures, control systems, printing extrusion units, milling power units and supporting automation accessories according to clients’ production dimensions, processing materials, precision standards, site conditions and automation demands. It provides a full chain of supporting services ranging from preliminary scheme communication, 3D modeling, structural simulation, component processing, complete machine assembly, process commissioning and sample trial production to packaging, delivery, overseas on-site installation and training. The company breaks industry barriers such as high prices, long customization cycles and slow after-sales response of imported composite equipment, accelerates the export of domestic integrated additive-subtractive robotic equipment, and realizes domestic substitution of high-end intelligent manufacturing machinery.

The overseas client for this project has more than ten years of experience in producing high-end art models, focusing on high-value customized artworks for hotel soft decoration, small urban landscape sculptures, museum replica exhibits and premium home special-shaped ornaments. Although these products carry high profit margins, they adopt near-zero-tolerance production standards for finished appearance, texture details and dimensional tolerances. During the first round of online technical communication, the client fully presented the pain points of its existing production line and mandatory technical indicators for the new machine, and clarified core demands for adopting the 3D printing and milling composite robotic arm.

First, most of the client’s orders feature ultra-thin relief textures, intricate carved lines, micron-level micro hollow structures and soft gradient curved lines. Workpieces formed with universal 0.4mm standard nozzles on the market show visible stepped layer lines on the surface, blurry edges of delicate patterns and material accumulation bulges at corners. Even with extensive subsequent manual polishing and precision milling, printing defects inside tiny concave textures cannot be removed. The finished product reject rate has long remained above 15%, wasting large amounts of materials and labor hours and squeezing overall profit margins.

Second, the client’s orders are mostly small-batch, multi-style customized high-end products. Every sculpture and ornament has a unique curved shape, requiring extremely uniform lines, smooth curved surfaces and consistent dimensions. Slight forming defects will lead to full batches of scrapped workpieces that cannot be delivered to overseas end buyers.

Third, the client pursues a fully automatic closed-loop production process without manual secondary disassembly and assembly of workpieces. After the 3D printing of blanks, the robotic arm can automatically switch to the milling unit to complete surface precision milling, edge chamfering, texture deepening and dimensional calibration in one single clamping, avoiding precision loss caused by repeated handling and repositioning.

Fourth, the production line needs to be compatible with more than ten types of soft and hard printing materials. The printing unit of the equipment must deliver strong compatibility, without nozzle clogging, unstable material output, stringing or filament breakage during long continuous operation, so as to guarantee stable all-day production.

Taking the client’s multiple strict standards into comprehensive consideration, the R&D team of ARTECH CNC launched a two-week special technical seminar. After comparing the forming effect, wear resistance, fluid control capacity and material compatibility of multiple mainstream printing nozzles on the market, the team finally decided to abandon conventional large-aperture standard nozzles and adopt industrial-grade ultra-fine precision 3D printing nozzles as the core extrusion component of the complete machine.

According to R&D engineers, traditional standard nozzles feature large apertures and high material extrusion flow rates, only suitable for rapid rough forming of large-sized workpieces, and fail to capture millimeter or even micron-level delicate textures. In contrast, the customized ultra-fine nozzles adopted this time adopt precisely polished internal flow channels without burrs, ensuring uniform resistance during material transportation and a tiny error range of material output flow. They support printing layers as thin as 0.08mm, generating slender and consistent printed lines that can fully restore 0.1mm-level intricate carvings, micro hollow structures and gradient curved surfaces shown in drawings, fundamentally eliminating common defects such as printing layer lines, material accumulation and blurry edges.

Meanwhile, these ultra-fine nozzles are made of hardened steel with high hardness and excellent wear resistance. Even after long-term printing of abrasive materials such as carbon fiber and wood fiber fillers, the aperture will not deform due to wear, greatly extending the service life of core components and reducing clients’ later replacement and maintenance costs. Each nozzle is equipped with an independent constant-temperature heating module with temperature control accuracy up to ±0.5℃, compatible with materials of different melting points including PLA, ABS, flexible resin and composite wood fiber, avoiding uneven melting, material jamming or nozzle clogging, and perfectly matching the client’s multi-material production demands.

After confirming the core printing nozzle configuration, mechanical structure engineers of ARTECH CNC simultaneously carried out 3D modeling and motion trajectory simulation design for the complete machine. Centered on the forming characteristics of ultra-fine nozzles, they optimized the multi-axis motion algorithm of the robotic arm and adjusted printing path planning logic to reduce line deviation caused by mechanical vibration during printing and guarantee consistent forming of delicate textures.

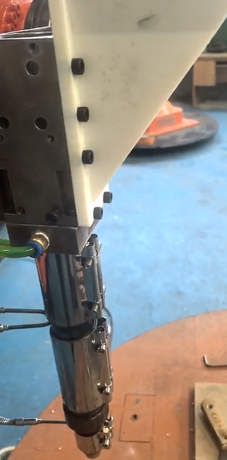

The complete machine adopts a multi-degree-of-freedom industrial robotic arm as the motion carrier, which accommodates both the ultra-fine 3D printing extrusion unit and a high-speed precision milling spindle. The machine can automatically switch between printing and milling modes according to preset programs without manual replacement of tooling fixtures. In the printing phase, the ultra-fine nozzle deposits materials layer by layer to form complex blanks. The multi-dimensional flexible movement of the robotic arm is not limited by the stroke of fixed machine tools, enabling processing of large-sized special-shaped sculptures and curved ornaments. Upon completion of printing procedures, the system automatically switches to milling mode, and the high-speed spindle carries out finish machining on workpiece surfaces and internal delicate textures to remove minor printing traces and calibrate overall dimensional tolerances. This seamless integration of "additive forming + subtractive finishing" thoroughly solves the dual drawbacks of insufficient precision of standalone printing equipment and incapability of integrated complex forming of standalone milling machines.

The control system adopts ARTECH CNC’s self-developed integrated additive-subtractive CNC system, which supports automatic generation of composite printing and milling paths after importing 3D models. Operators can launch fully automatic production simply by importing drawings without mastering complex programming technologies, greatly lowering the technical threshold for factory staff of clients.

After finishing the design of mechanical structures, printing units and control systems, the project entered the assembly and process testing phase in the factory. Workshop assembly teams completed component assembly, wiring layout, nozzle calibration and robotic arm precision calibration strictly in accordance with R&D drawings. After full assembly, technical commissioning engineers launched a 72-hour non-stop extreme test to simulate all-day continuous production conditions at the client’s factory. Batch sample printing tests were carried out with three mainstream materials including resin, wood fiber composite and lightweight foam, to compare the forming effect difference between standard nozzles and customized ultra-fine nozzles.

Test data clearly reflects the core advantages of ultra-fine nozzles. Samples printed with standard nozzles feature rough edges of relief textures, obvious stepped layers on curved surfaces and accumulated materials inside tiny hollow structures, requiring at least three finishing milling procedures. In contrast, samples printed with ultra-fine precision nozzles have smooth and flat surfaces, clear and coherent intricate carved lines, intact and transparent micro hollow structures, and no material bulges at corners. Only one light milling and polishing procedure is needed to meet finished product delivery standards, cutting the processing time of a single workpiece by over 30%, alongside synchronous declines in material consumption and manual polishing costs. During the long continuous test, the ultra-fine nozzles experienced zero clogging, filament breakage or unstable output faults. The motion trajectory remained stable, and the repetitive positioning accuracy of the robotic arm was steadily maintained at ±0.02mm. All process indicators fully met the client’s customized standards.

Test samples, complete machine operation videos and comparative files of forming effects were sent to the client. The client’s technical team reviewed printing details, milling workflows and long-term stable operation footage frame by frame, and expressed high recognition of the ultimate forming effect brought by ultra-fine nozzles. The client’s procurement manager stated in communication that they had contacted multiple domestic and foreign equipment manufacturers previously, who could only supply machines equipped with standardized large-aperture nozzles unable to meet the production demands of delicate textures on their high-end artworks. Although some imported composite equipment allows replacement of ultra-fine nozzles, the customized price is extremely high, the delivery cycle lasts more than half a year, and the response of after-sales technical support is slow. In comparison, ARTECH CNC can complete special design of the whole machine according to process requirements, and match ultra-fine precision printing nozzles in a targeted manner, balancing forming accuracy, equipment cost performance and fast delivery capacity. The complete scheme perfectly matches the client’s factory expansion plan for the next three years and solves long-standing production line problems including high finished product reject rates and low processing efficiency.

The special design of this customized 3D printing and milling composite robotic arm is a benchmark project launched by ARTECH CNC targeting the high-end fine forming market relying on its customized R&D capacity, fully demonstrating the company’s technological accumulation and flexible customization advantages in the field of integrated additive-subtractive robotic equipment. At present, most domestic CNC equipment manufacturers focus on mass standardized machines, and rarely adjust core printing and processing components according to clients’ segmented process demands. Adhering to the customized R&D philosophy of "one exclusive solution for one client", ARTECH CNC is not limited to fixed equipment configurations. It can flexibly adjust nozzle specifications, spindle power, robotic arm stroke and control system programs according to clients’ product precision, textures, materials and automation demands, optimize the overall processing performance starting from core components, and adapt to diverse segmented scenarios such as cultural and creative sculptures, industrial prototypes, mold manufacturing and furniture special-shaped parts.

From the perspective of the person in charge of the in-plant R&D center, global high-end customized processing markets will maintain growing demand for refined forming equipment, and standardized machines alone can no longer cover differentiated process requirements of clients. In the future, the enterprise will continuously increase R&D investment in integrated additive-subtractive robotic equipment, carry out technical iterations targeting three directions including ultra-fine printing, extra-large forming and metal composite processing, and continuously optimize three core modules: ultra-fine printing nozzles, multi-axis linkage milling systems and intelligent CNC software, launching more customized robotic equipment adapted to high-end precision manufacturing scenarios. Supported by a mature export service system, the company provides global overseas clients with one-stop services including drawing design, sample trial production, complete machine manufacturing, export wooden case packaging, ocean freight logistics, overseas on-site installation and commissioning, and lifelong technical guidance, continuously improving the competitiveness of domestic intelligent CNC equipment in the global high-end market and helping more overseas cultural and creative manufacturers upgrade to automatic, high-precision and high-efficiency production.

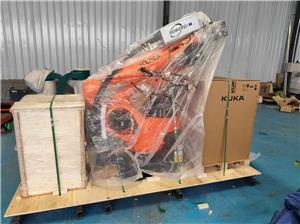

At present, all work including the overall design, process commissioning and sample testing of this customized 3D printing and milling robotic arm equipped with ultra-fine precision 3D printing nozzles has been completed. The machine has entered the preparation phase of standardized export packaging, and ocean freight delivery will be arranged after passing all factory ex-inspections. The technical team of ARTECH CNC will keep tracking logistics progress of the equipment. Upon arrival at the client’s factory, professional overseas engineers will be dispatched to complete on-site installation, system commissioning and operator training, alongside long-term remote technical support, material adaptation guidance and nozzle maintenance tutorials to guarantee stable long-term production of the equipment.

Moving forward, ARTECH CNC will continue to deepen the track of customized intelligent robotic equipment, take clients’ actual production pain points as the orientation of R&D, continuously break technical barriers of integrated additive-subtractive processing, and serve manufacturers worldwide with demands for high-precision customized processing through refined, highly adaptable and cost-effective domestic intelligent machinery, promoting the popularization and application of integrated additive and subtractive manufacturing technologies across the globe.
